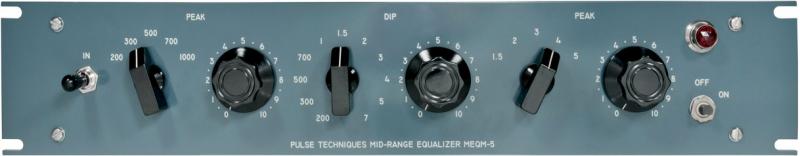

MEQM-5

Like our other mastering products, the potentiometers have been replaced with custom taper 21-position precision rotary switches providing enhanced control and reproducibility of settings.

• Low-midrange peak boost: 200, 300, 500, 700, 1000 CPS, 0 - 10 dB

• High-midrange peak boost: 1.5, 2, 3, 4, 5 KCS, 0 - 8 dB

• Dip Atten: 200, 300, 500, 700 CPS and 1, 1.5, 2, 3, 4, 5, 7 KCS, 0 - 10 dB

• Input Transformer: 600 Ohms

• Output Transformer: 600 Ohms

• Noise: Below -75 dBm

• Distortion: 0.15% at +10 dBm into 600 Ohms

• Amplifier: 20 CPS to 20 KCS, +0, -1 dB ref 1KCS

• Tubes: 1 ea 12AX7, 6AQ5, 6X4
