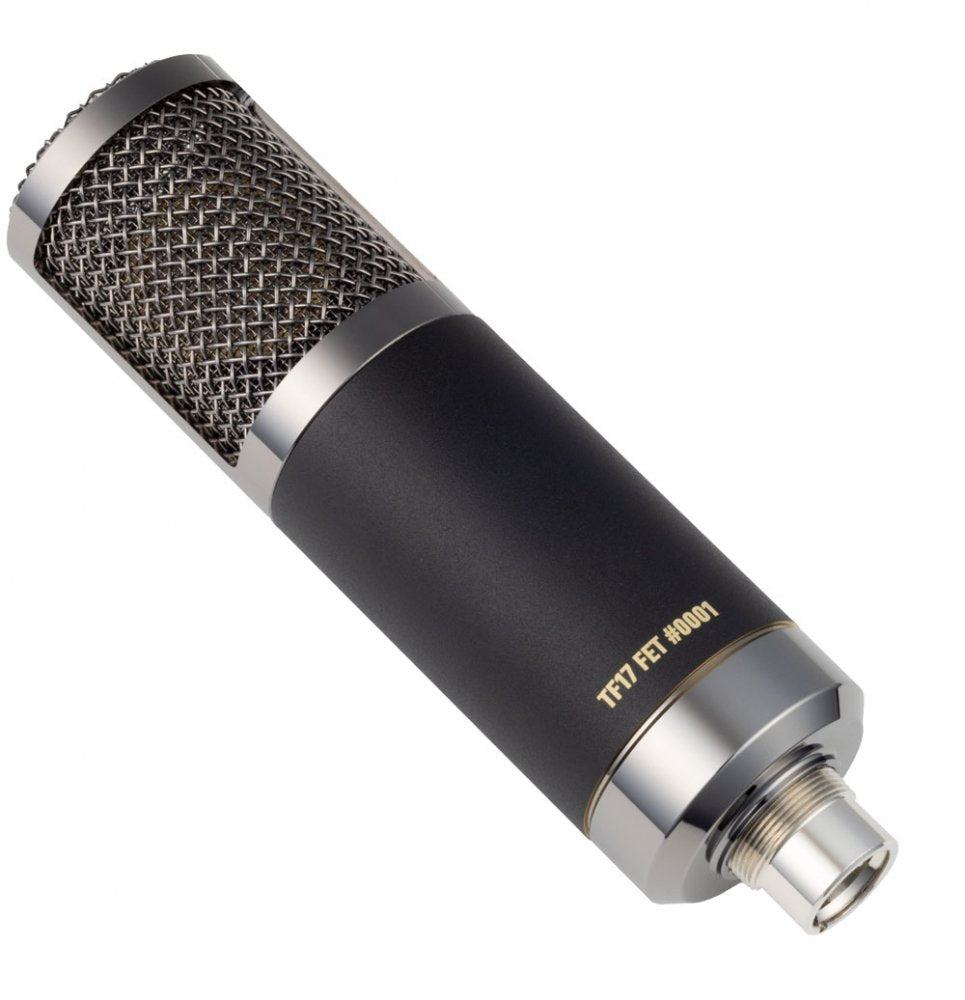

TF17 FET Stereo Set

The TF17 Stereo Set is designed for high fidelity stereo or dual mono recording in the studio or on stage. Combining an iconic "German" inspired mid-forward character with modern FET technology, the TF17 features an extended low frequency response, bold midrange and smooth top end with a fast transient response, high SPL handling, and low self-noise. When used in stereo, the TF17 provides a rich and focused sound stage. Featuring a matched pair of TF17 microphones, this set is ideal for drums and percussion, piano, and vocal or brass ensembles. Each microphone features a K47-style center terminated capsule, precision through-hole components and a discrete, hand-tuned JFET amplifier. The capsules and amplifiers are frequency, gain and noise matched. All TF17 Stereo Sets are assembled, matched, and tested in the USA.

• Bold and forward tone with punchy transient response

• Compact size suitable for all recording environments

• Fixed true cardioid polar pattern with K47-style capsule

• High SPL handling, low noise phantom-powered FET amplifier

• UK-made OEP/Carnhill transformer with high grade nickel-iron core

• Designed and assembled by hand in the USA

• Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound

Polar Pattern: Cardioid

Frequency Range: 20 Hz " 20 kHz, ±3 dB

Polar Pattern: Cardioid

Frequency Range: 20 Hz " 20 kHz, ±3 dB

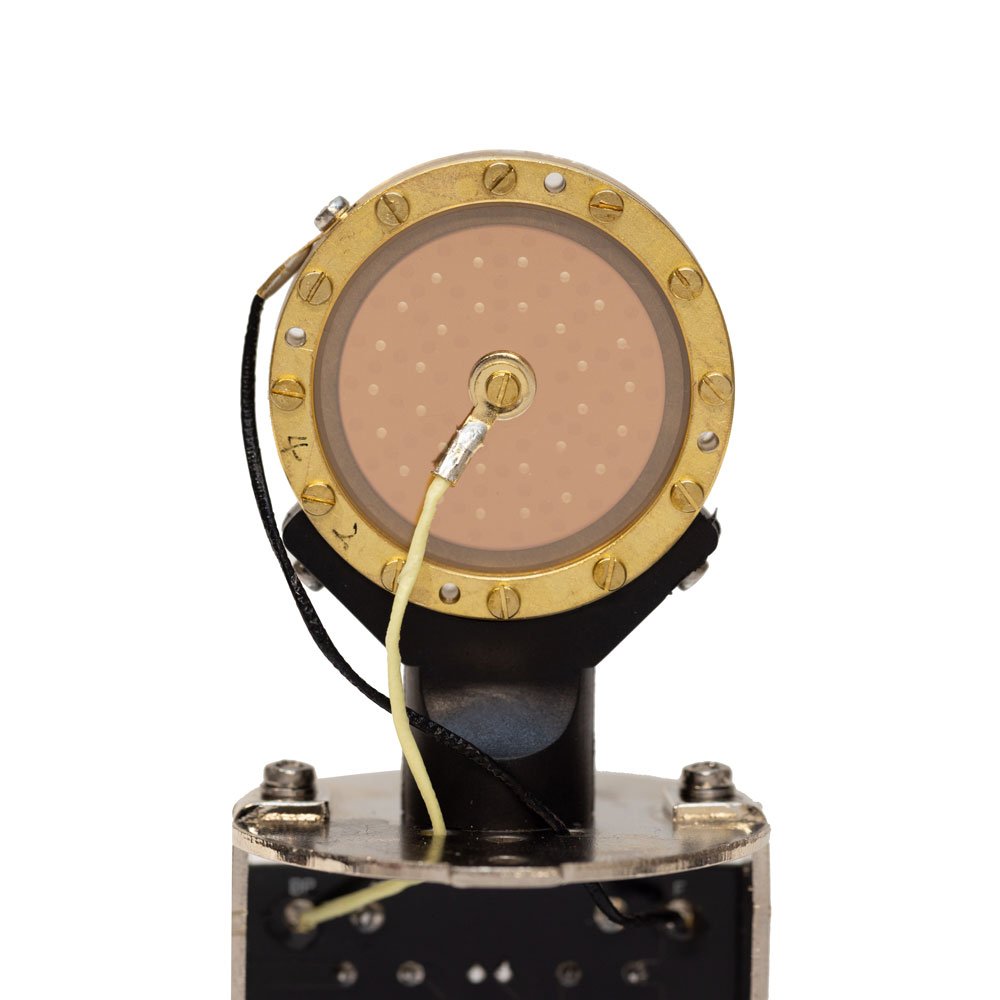

Capsule: TK47S " Center Terminated Large Diaphragm, Single Membrane

Amplifier Type: Transistor (+48V phantom power required)

Transformer: OEP/Carnhill T217

Sensitivity: 12 mV/Pa, ±1 dB

THD at 1 kHz at 1 Pa (Amplifier): 0.01%

Output Impedance: < 200 Ω

Maximum SPL (for 1% THD): > 135 dB

S/N Ratio: 91 dBA

Self-Noise (Amplifier): 3 dBA

Dimensions: 175 mm L x 46 mm Dia

Weight: 545 g

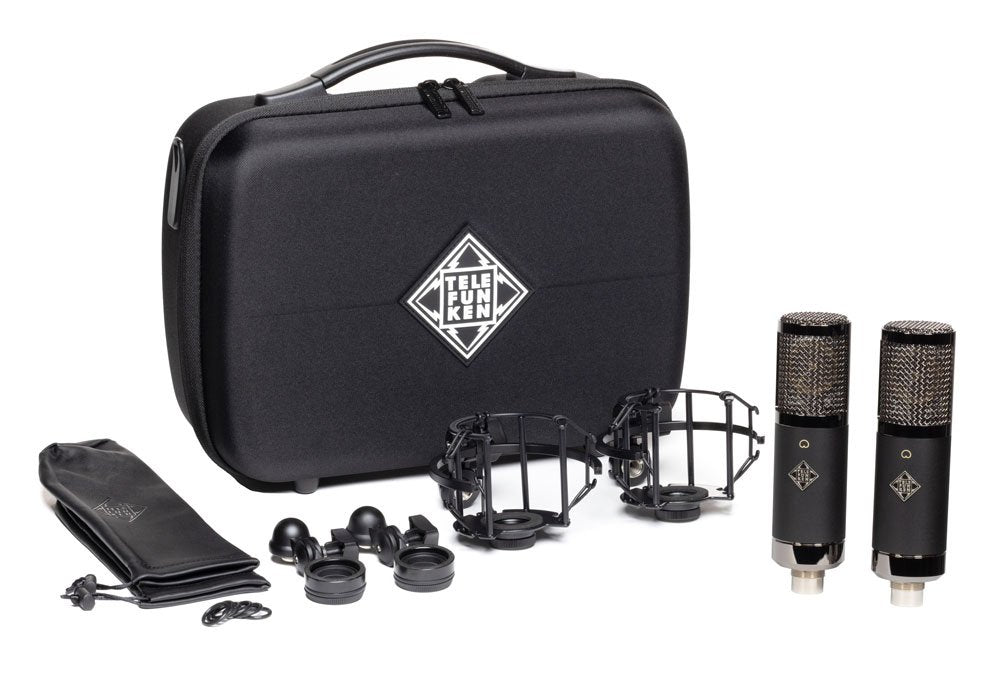

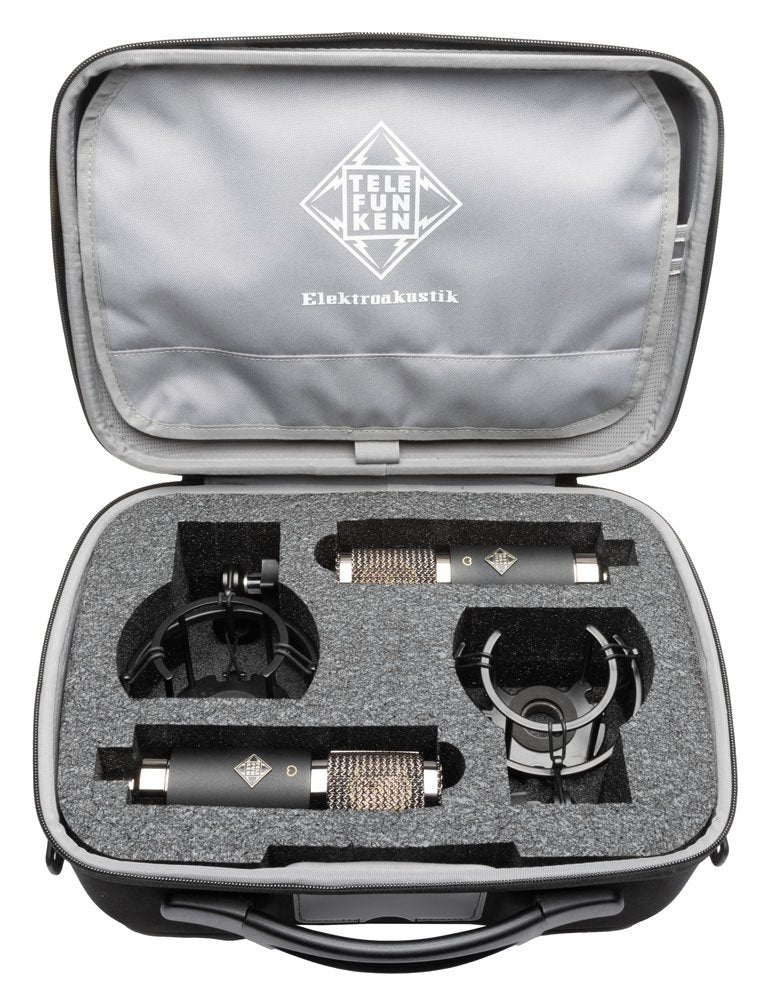

EACH SYSTEM INCLUDES:

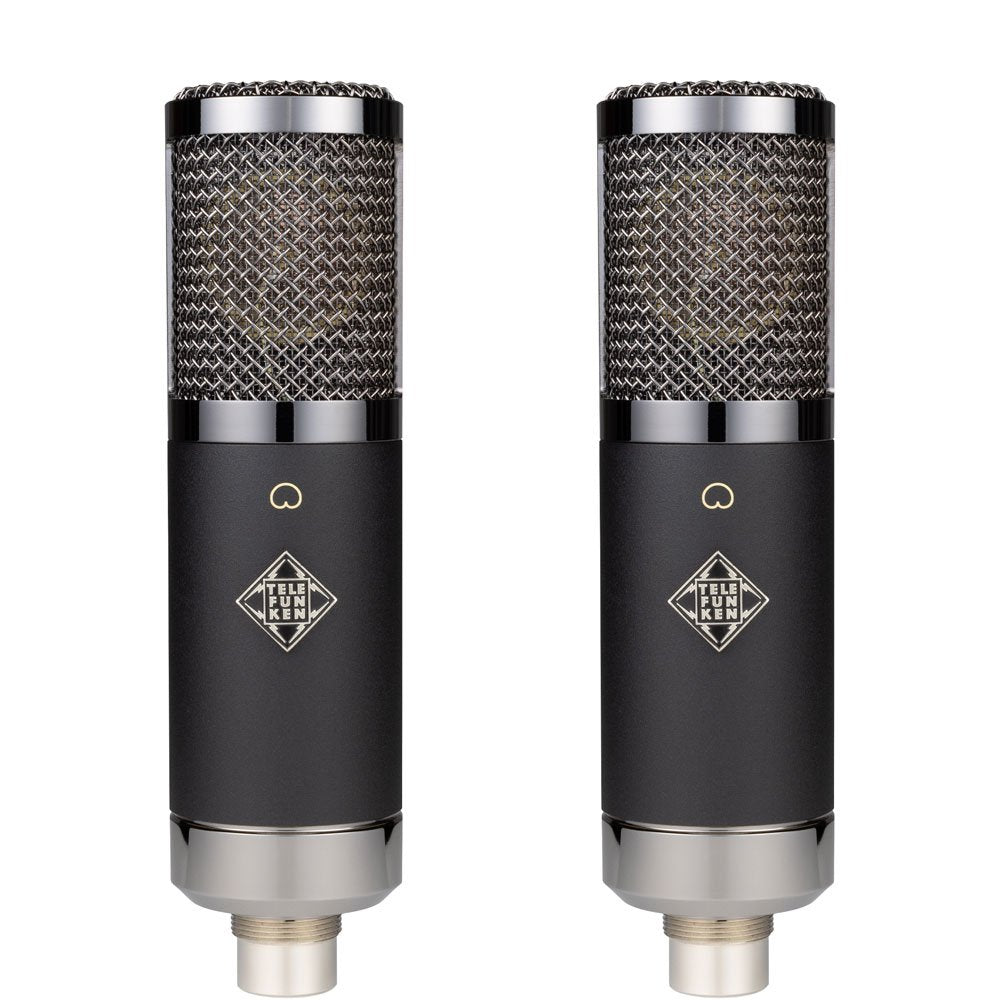

(2x) Matched TF17 Microphones

(1x) ZC11S Zipper Case

(2x) M 703 Shock Mounts

(2x) M 782 Stand Mounts

(2x) MS01 Microphone Sleeves
