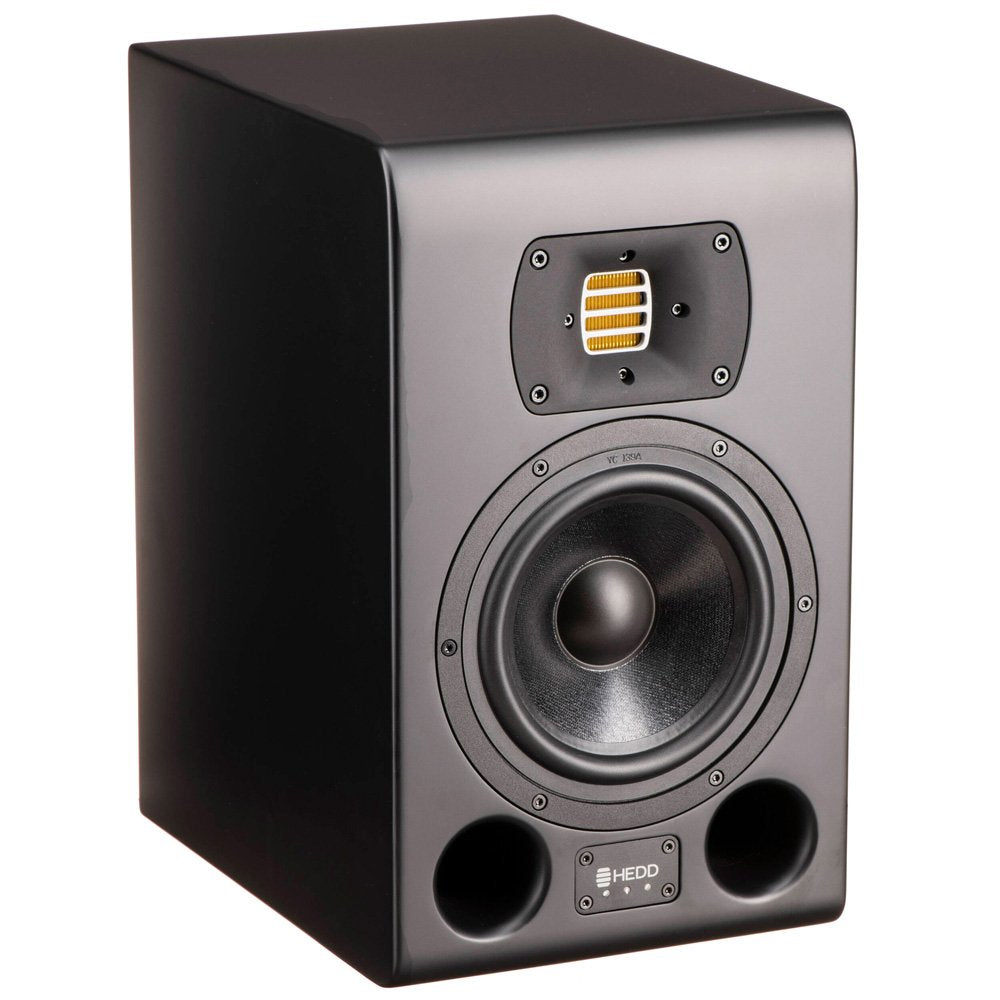

Type 07 MK2 Black

Unlock the true potential of your music. Hear every subtle nuance and delicate detail, redefining your perception of sound.

This cutting-edge 2-way speaker solution is meticulously crafted for home producers and studio engineers who demand the utmost in pure, authentic sound.

It breathes life into every note, infusing your creations with unparalleled vibrancy and depth.

The Type 07 monitor is your gateway to unparalleled sonic artistry. Let your creativity soar and unlock the true potential of your music.

Air Motion Transformer Handmade in Berlin using high quality components, the HEDD Air Motion Transformer puts HEDD's expertise at your disposal to deliver impeccable transient response and ultra-high frequency extension. As a result, high frequencies remain transparent and linear and do not distort natural sound reproduction in any way.

Lineariser HEDD Lineariser is an optional function that eliminates speaker-related time delays improving transient response and imaging precision. The phase correction can be synched with our BASS subwoofer range to compensate for group delay in a sat-sub system.

CoP: Closed or Ported Emerging from extensive research into the HEDD Tower Mains System, the Closed or Ported functionality allows all HEDD MK2 monitors to switch between two designs with the flip of a switch and the use of a plug.

While Ported (open), the monitors can deliver the voluminous bass response with impressive sound extension you'd expect. Seal the bass ports with the plug and experience a new level of bass precision, texture details, and low-end harmonics.

Designed and made in Berlin Heinz ElectroDynamic Designs (HEDD) is a German manufacturer of high-end studio loudspeakers and HEDDphones founded by Industry Legend Klaus Heinz and his son, Musicologist Dr. Frederik Knop.

Drawing on a rich history in audio creation and reproduction, the company designs and handcrafts its products in Berlin since 2016.

• 7" honeycomb diaphragm

• 100W ICE Power Class-D amps

• Dedicated 4" driver for midrange

• High definition HEDD Air Motion Transformer

• Powerful SHARC-DSP and onboard LineariserR flatten speaker phase and create fascinating stereo image and depth

• Closed or Ported functionality for two distinct sound experiences: accurate and detailed (closed) or energetic and bassy (ported)

• Complete linear phase Satellite-Subwoofer setup with BASS 08 subwoofers

• Desktop and shelving filters

• Bass-extension mode

• Aluminum pot controls

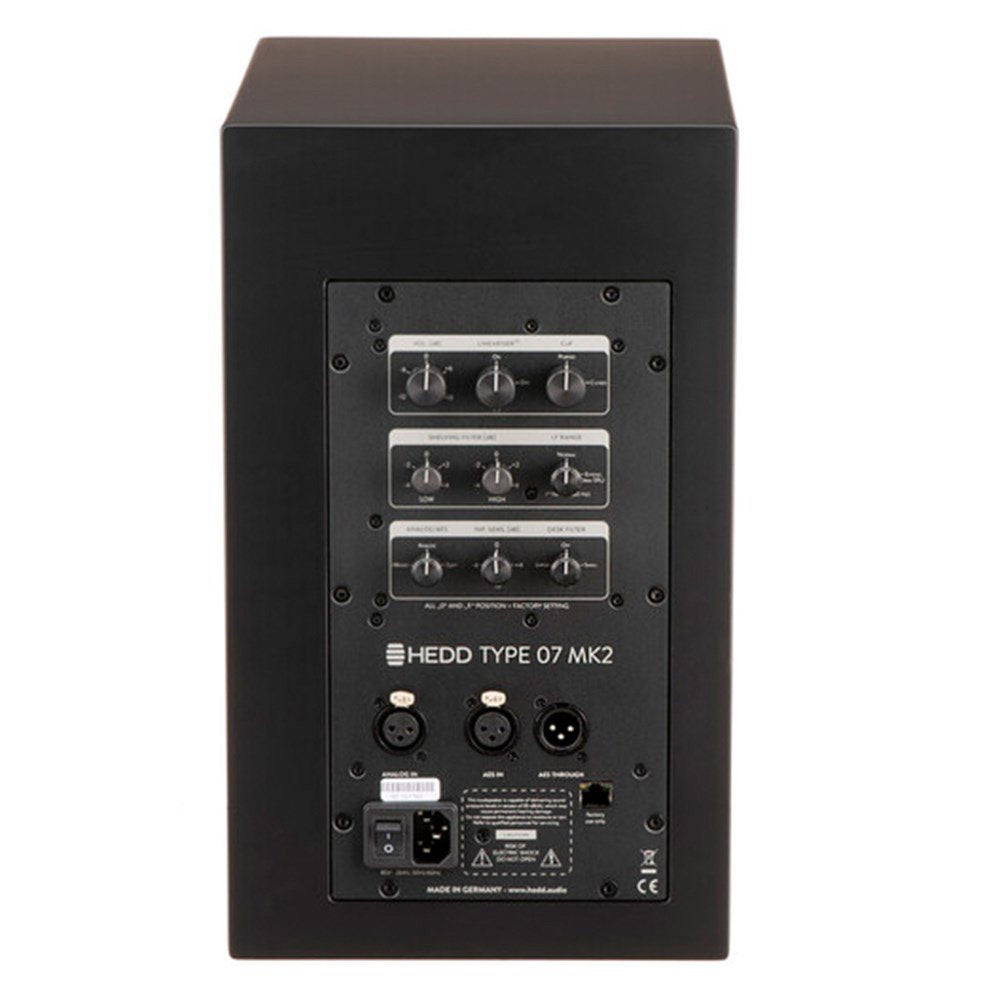

• Analog XLR and Digital AES connections

MAIN FEATURES:

HEDD Lineariser, CoP, GDC, LFE, Desk and Shelf Filters

DSP INTEGRATION:

Custom high-resolution 96 kHz / 32 Bit AD / DA converter

DRIVERS:

2-Way: 7" Woofer (1,5" voice coil) + HEDD AMT Tweeter

POWER:

2x100 W ICEpower amplification (85-264 V)

CROSSOVERS:

2.300 Hz

FREQUENCY RANGE:

38 Hz - 40 kHz (LFE: 30 Hz - 40 kHz)

MAXIMUM SPL:

116 dB SPL (sound pressure level) per pair at 1m

INPUTS:

Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)

OUTPUT:

Digital AES pass-through via XLR

DIMENSIONS:

370 x 220 x 300 mm

WEIGHT:

9.9 kg per unit
