ngLeveler

ngLEVELER - "Next generation Leveler" is analog automation system with convenient features for better studio integration. Besides its automation engine it also brings analog saturation per each channel which helps tracks to get more presence in the mix. ngLEVELER doesn't have any controls, it is either managable via: - DAW Plug-in - HUI controller - Or both

This approach gives us very convenient fader control with true total recall system via DAW plug-in. ngLEVELER was created to become studio centerpiece, and because of its simple analog connectivity it can be used in many applications!

16 channels of analog automation with total recall

+25dBu(IN) / +28dBu(OUT) of headroom

6dB passive attenuator (PAD) for better integration with high level signals

Very low noise and distortion - THD+N < 0.01%

MUTE and SOLO for each channel

HUI controller integration

16 channels of Proprietary THD

IN and OUT (before and after signal leveling) metering fully integrated with DAW plug-in

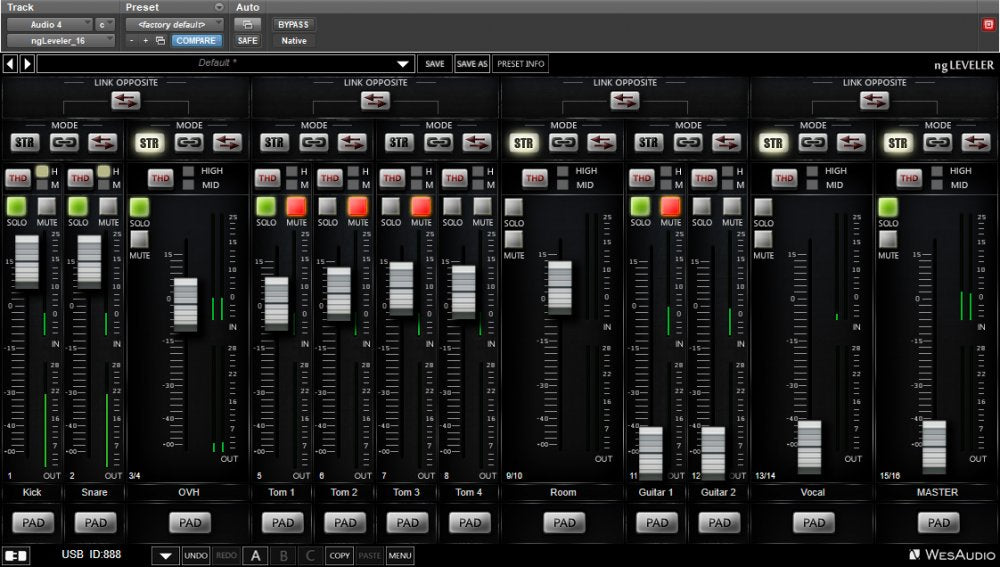

Flexible DAW/Live plug-in control for instant recall

DB-25 analog connectivity

Management via Ethernet or USB

Fully digitally controlled and isolated analog circuit,

Full automation record via HUI

Free software and firmware upgrades

THD+N(20Hz-20kHz) at 0dBu < 0.008%

Freq response: 0-250kHz (-3dB)

Input impedance > 10kohm

Output impedance < 50ohm

Channels crosstalk > 100dB

Max input level: +25dBu

Max output level: +28dBu

Dynamic range > 118dB

Hardware Digital resolution: ~2500 steps per channel*

*DAW, or HUI controller may support lower resolution, in that case it will translate to lower number of HW steps.
